For every Industrial maintenance, repair and overhaul challenge Ultraloc has the right solution. Designed to prevent common failures, extend equipment life and increase production reliability. The Ultraloc range is a maintenance professionals most reliable tool.

ULTRALOC ACTION 3.jpg
ULTRALOC ACTION 1.jpg

>

ULTRALOC - THREADLOCKERS

The most reliable method to lock and seal threaded fasteners. From easy removal small threads under 6mm to permanent high strength over 25mm. Ultraloc brand thread lockers are available in varying viscosities and strengths for virtually any application.

Prevents loosening of fasteners, Seals against corrosion, Provides correct lubricity, Controlled strengths, Suitable for all fastener sizes, Easy to apply.



3222 Compound

10mL - 322210

50ml - 322250

250ml - 322225

+

Anaerobic low strength removable grade threadlocking compound for small metal screws, nuts & fasteners less than 6mm in diameter.

Type: Small fasteners under 6mm

Colour: PURPLE

Strength: Low

Fixture Time: 30-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: Easy Disassembly / Small screws

-

3242 Compound

10ml - 324210

50ml - 324250

250ml - 324225

+

Anaerobic medium strength removable grade threadlocking compound for metal screws, nuts & fasteners between 6mm and 20mm in diameter.

Type: Fasteners 6mm to 20mm

Colour: BLUE

Strength: Medium

Fixture Time: 30-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: High Viscosity

-

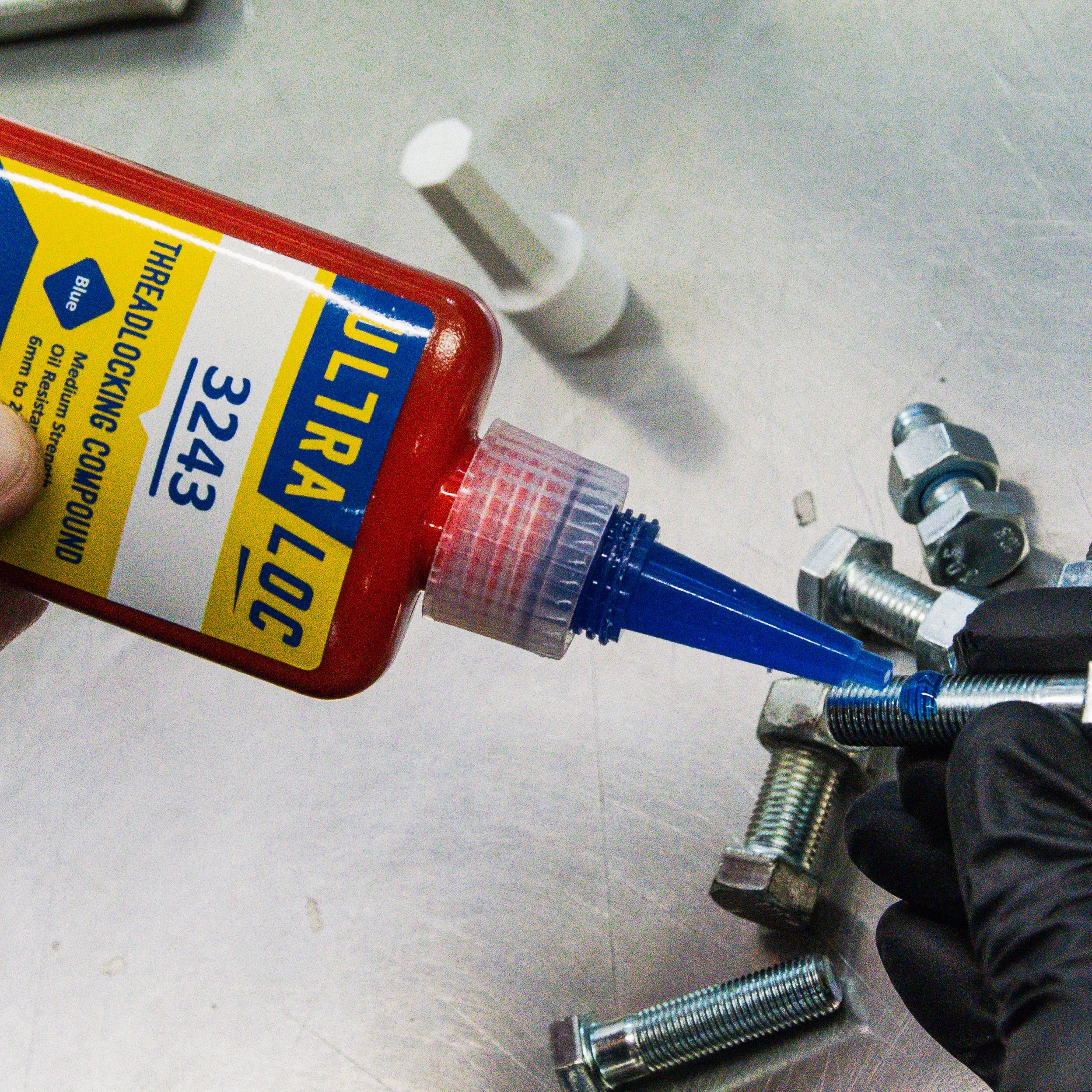

3243 Compound

10ml - 324310

50ml - 324350

250ml - 324325

+

Anaerobic medium strength, oil resistant removable grade threadlocking compound for metal screws, nuts & fasteners between 6mm and 20mm in diameter.

Type: Fasteners 6mm to 20mm

Colour: BLUE

Strength: Medium

Fixture Time: 10-min / 24 hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: Oil Resistant

-

3262 Compound

10ml - 326210

50ml - 326250

250ml - 326225

+

Anaerobic high strength permanent grade threadlocking compound for metal screws, nuts & fasteners up to 20mm in diameter.

Type: Fasteners up to 20mm

Colour: RED

Strength: High

Fixture Time: 20-min / 24 hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: Permanent Grade

-

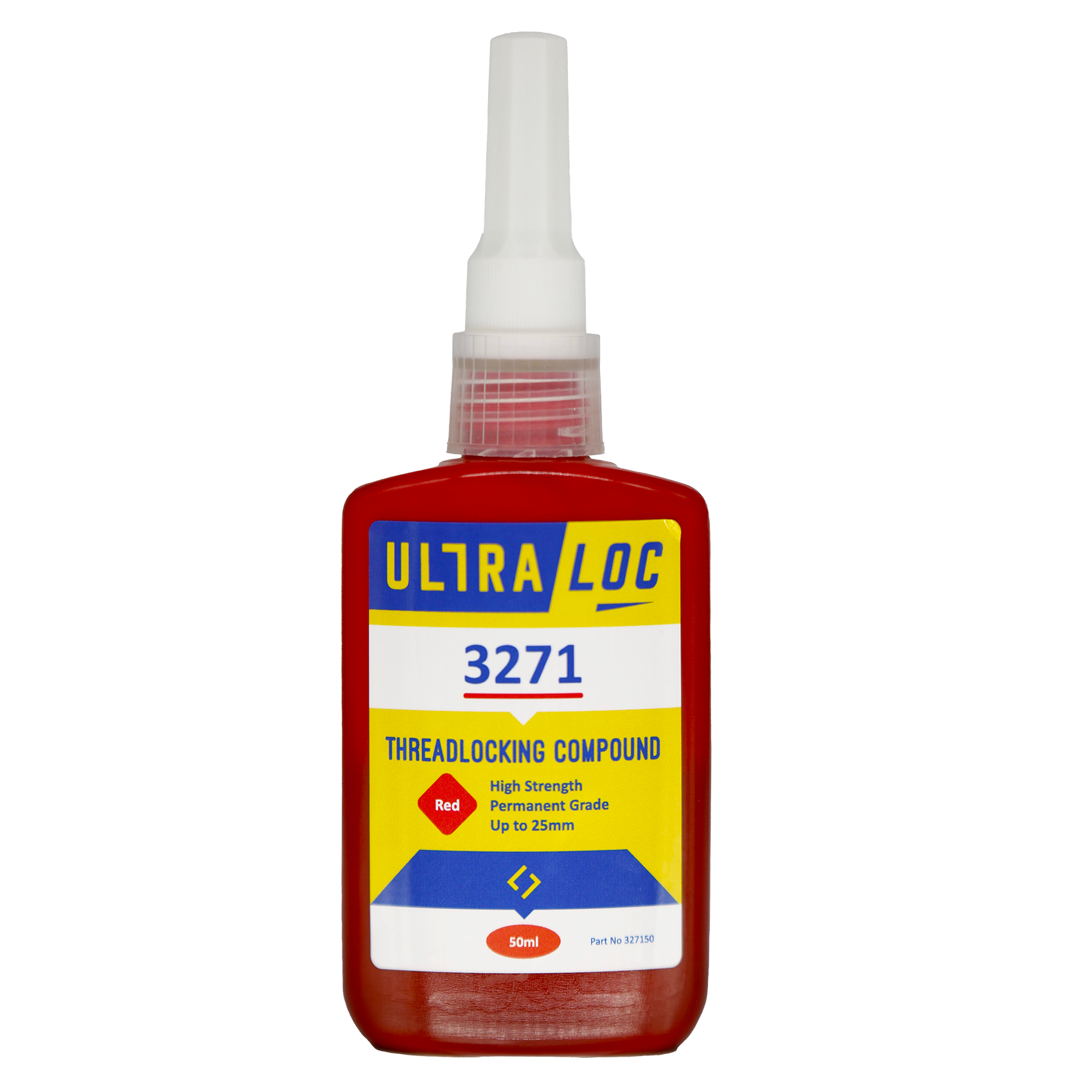

3271 Compound

10ml - 327110

50ml - 327150

250ml - 327125

+

Anaerobic high strength & medium viscosity permanent grade threadlocking compound for metal screws, nuts & fasteners up to 25mm in diameter.

Type: Fasteners over 25mm

Colour: RED

Strength: High

Fixture Time: 10-min / 24 hrs

Temp Range: -50c to + 150c

Viscosity: Medium

Features: Permanent Grade

-

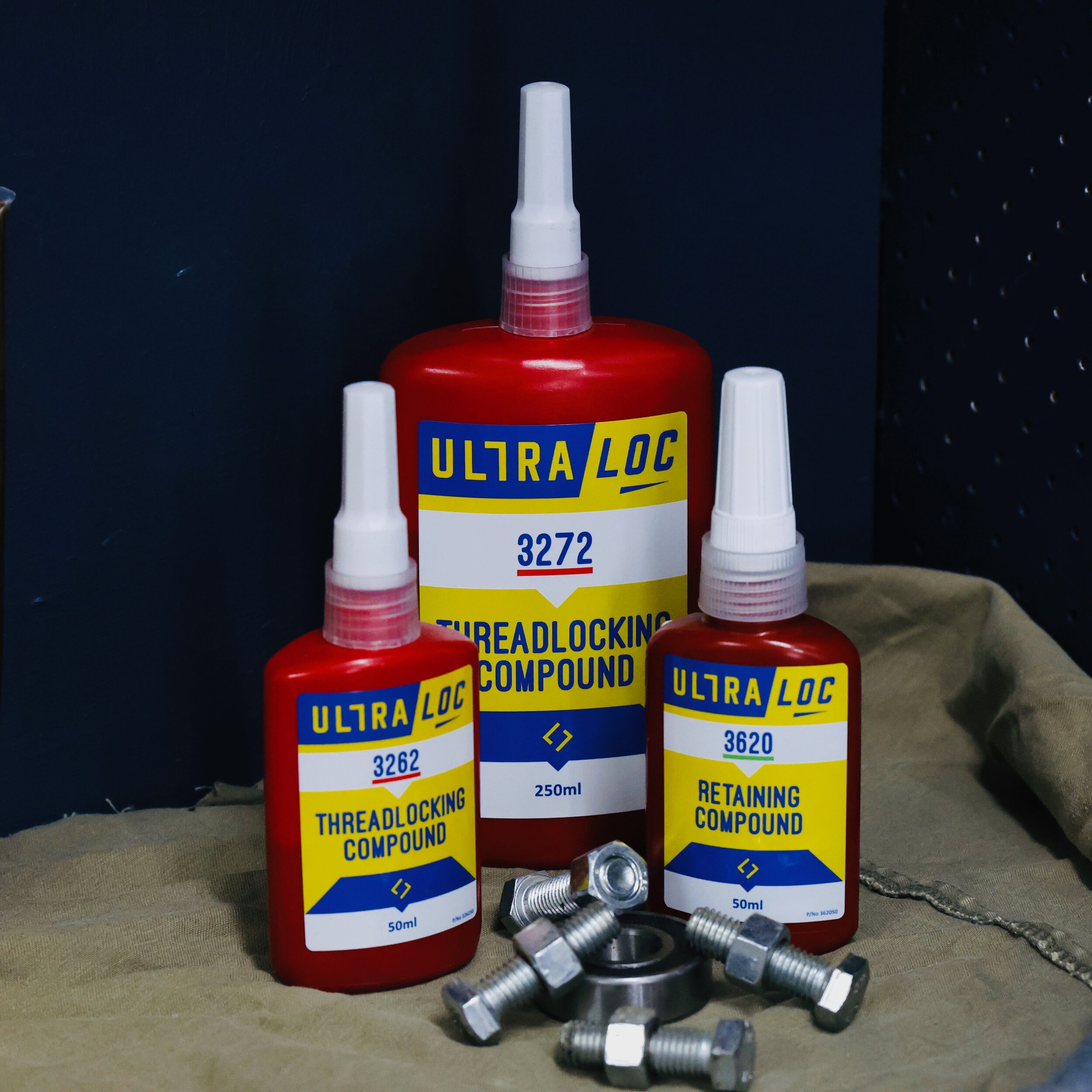

3272 Compound

10ml - 327210

50ml - 327250

250ml - 327225

+

Anaerobic high strength & high temp threadlocking compound for metal screws, nuts & fasteners up to 25mm in diameter.

Type: Fasteners over 25mm

Colour: RED

Strength: High

Fixture Time: 30-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: High Temp & High Strength

-


3277 Compound

10ml - 327710

50ml - 327750

250ml - 327725

+

Anaerobic high strength & oil resistant threadlocking compound for metal screws, nuts & fasteners over 25mm in diameter.

Type: Fasteners over 25mm

Colour: RED

Strength: High

Fixture Time: 30-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: Oil Resistant & Permanent

-

3290 Compound

10ml - 329010

50ml - 329050

250ml - 329025

+

Anaerobic wicking (penetrating) grade threadlock compound for sealing porous welds & castings. Penetrating action allows to wick through thread paths & porous surfaces.

Type: Fasteners over 12mm

Colour: GREEN

Strength: Medium

Fixture Time: 20-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: Low

Features: Wicking Grade

-

3294 Compound

10ml - 329410

50ml - 329450

250ml - 329425

+

Anaerobic wicking (penetrating) grade, high temp threadlock compound for sealing porous welds & castings. Penetrating action allows to wick through thread paths & porous surfaces.

Type: Fasteners over 12mm

Colour: GREEN

Strength: Medium

Fixture Time: 20-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: Low

Features: Wicking Grade & High Temp

-

3440 Primerless

10ml - 344010

50ml - 344050

+

Primerless medium strength fast curing threadlocker. Suitable for use on motor mounting bolts, rocker nuts and other applications that require disassembly with hand tools.

Type: Fasteners up to 25mm

Colour: BLUE

Strength: Medium

Fixture Time: 4-min / 24hrs

Temp Range: -50c to + 150c

Viscosity: Medium

Features: Primerless & Fast Curing

-

3760 Primerless

10mL - 376010

50ml - 376050

+

Primerless high strength fast curing threadlocker. Suitable for use on bolts in transmissions, construction equipment and other heavy duty applications.

Type: Up to 25mm

Colour: RED

Strength: High

Fixture Time: 4-min / 24 hrs

Temp Range: -50c to + 150c

Viscosity: High

Features: Primerless

-



ULTRALOC - RETAINING COMPOUNDS

Anaerobic retaining compounds fill the ‘inner space’ between components and cure to form a strong precision assembly. Formulated in a wide range of viscosities, gap fills flexibility and strength characteristics.

Increased assembly & product reliability, Fills all voids & ensures 100% contact, Seals against corrosion, Controlled strengths



3609 Compound

10ml - 360910

50ml - 360950

250ml - 360925

+

Anaerobic low viscosity, high strength retaining compound that bonds rigid assemblies. Shear stregth of 3000psi after 24hr cure time.

Type: Close Fitting Parts

Colour: GREEN

Strength: High

Fixture Time: 30-min / 24 hrs

Temp Range: -55c to 150c

Viscosity: Low

Features: Shear strength of 3000psi

-

3620 Compound

10ml - 362010

50ml - 362050

250ml - 362025

+

Anaerobic fast curing, high temp, resistant retaining compound with high shear strength. Suitable for cylindrical fitting parts. Bonds gaps up to .010”.

Type: Up to .010”

Colour: GREEN

Strength: High

Fixture Time: 30-min / 24 hrs

Temp Range: -55c to 200c

Viscosity: High

Features: High strength, Temp & Viscosity

-

3641 Compound

10ml - 364110

50ml - 364150

+

Fast curing, controlled strength retaining compound that allows disassembly. 1800psi shear strength after 24hr cure. Ideal for cylindrical parts that require disassambly. Fills gaps up to .020”.

Type: Up to .020”

Colour: YELLOW

Strength: Medium

Fixture Time: 30-min / 24 hrs

Temp Range: -55c to 150c

Viscosity: Medium

Features: Allows disassembly

-

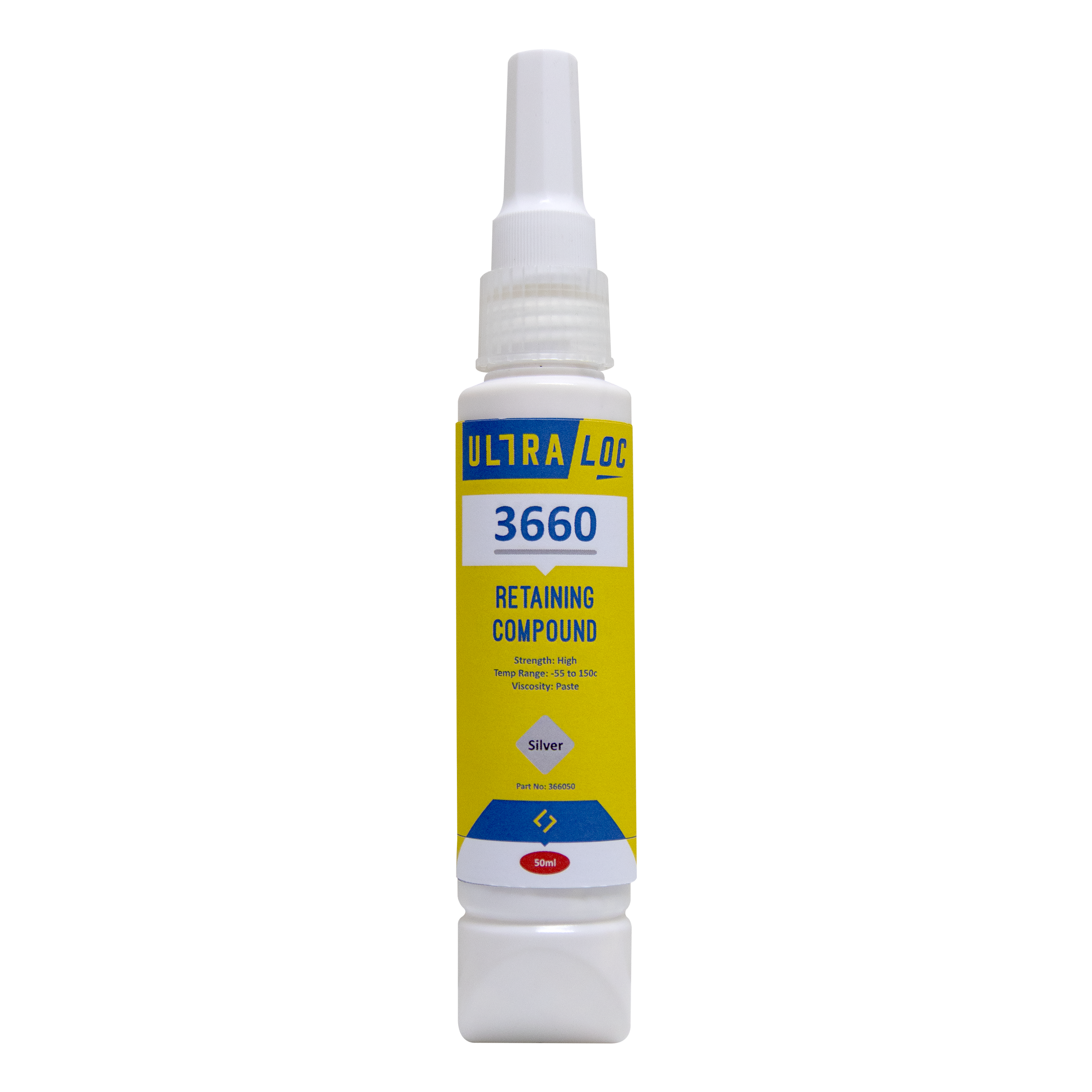

3660 Compound

50ml - 366050

+

High strength, fast curing, anaerobic retaining compound. Paste like consistency. Ideal for repairing keyways and worn machinery parts. Can fill gaps up to 0.50”.

Type: 0.50”

Colour: SILVER

Strength: High

Fixture Time: 10-min / 24 hrs

Temp Range: -55 to 150c

Viscosity: Paste

Features: Fast Curing, Repairs worn parts

-

3680 Compound

10ml bottle - 368010

50ml bottle - 368050

250ml bottle - 368025

+

High strength, high performance retaining compound for slip fitted parts. Ideal for gap filling up to 0.15”. Best resistance to dynamic, axial and radial loads. Recommended for retaining shafts, gears pulleys and similar cylindrical parts.

Type: N/A

Colour: GREEN

Strength: High

Fixture Time: 10-min / 24 hrs

Temp Range: -55 to 150c

Viscosity: High

Features: Fast cure

-



ULTRALOC - INSTANT ADHESIVES

Joining materials with adhesives offers significant benefits over mechanical methods of uniting two materials.

Convenient repairs in seconds, High shear and peel strength, No mixing, Bonds to a wide variety of materials, Extensive range available



3401 General Purpose

20g - 340120

+

Surface insensitive ethyl type A, medium viscosity general instant adhesive (cyanoacrylate). Used for bonding porous materials and plastics, will bond wood, leather, fabric, ceramic and paper.

Type: Surface Insensitive Ethyl

Colour: CLEAR

Strength: Medium

Fixture Time: 15-sec / 24 hrs

Temp Range: -50c to + 80c

Viscosity: Medium

Features: General Purpose

-

3406 Rubber & Plastic

20g - 340620

+

Instant adhesive (cyanoacrylate) surface insensitive ethyl type A low viscosity elastomer and plastic bonder. Very fast cure for bonding most types of plastics and rubber, including Viton & EPDM. O ring joiner. Bonds rubber to rubber and rubber to metal.

Type: Surface Insensitive Ethyl

Colour: CLEAR

Strength: High

Fixture Time: 30-min / 24 hrs

Temp Range: -55c to 150c

Viscosity: Low

Features: Bonds Most Plastics

-

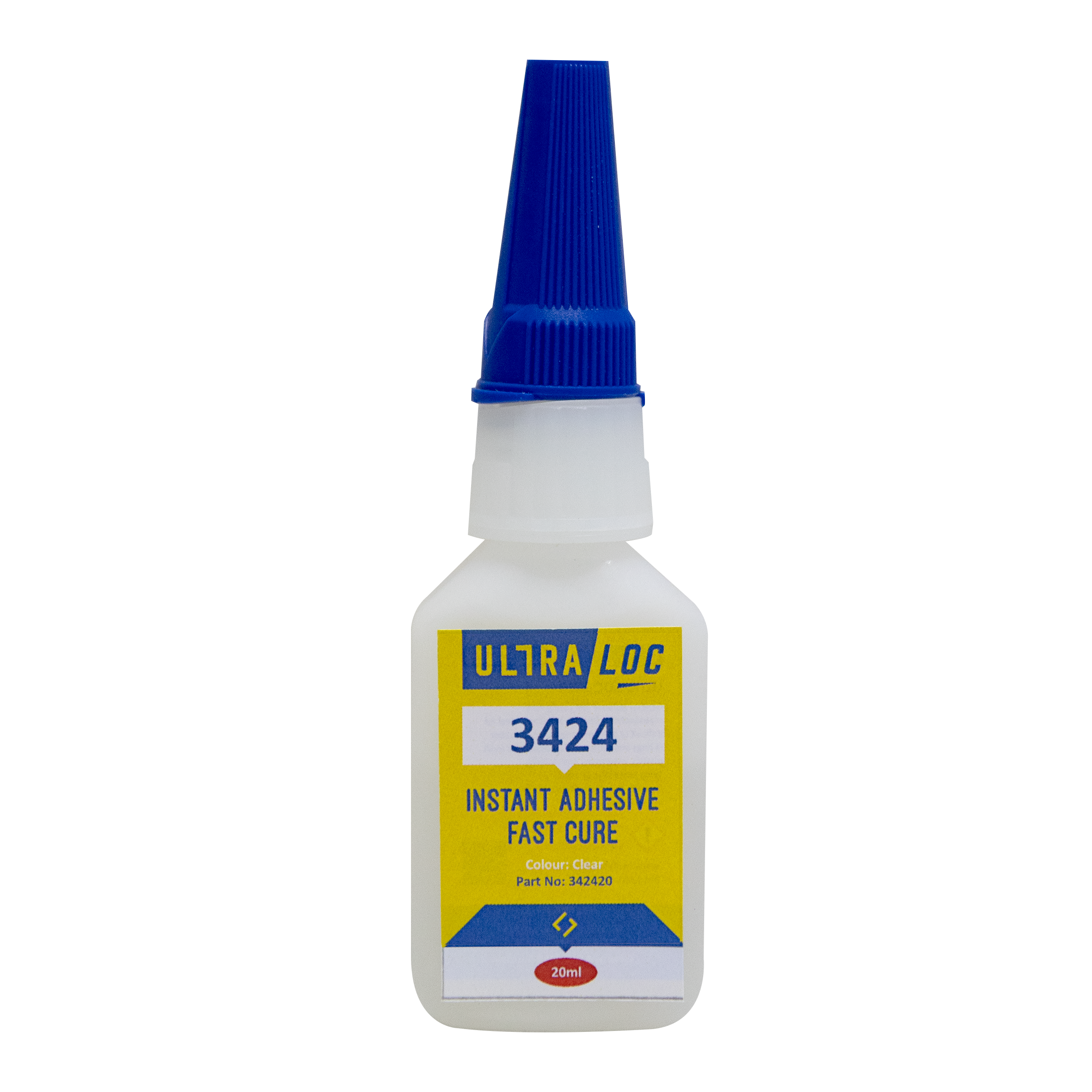

3424 Fast Cure

20g - 342420

500ml - 3424500

+

General purpose fast curing ethyl cryanoacrylate (instant adhesive). Ideal for difficult to bond materials such as rubber O-rings and rubber seals. Suitable for most plastics, elestomers and rubbers. Temp range -55c to + 90c

Type: Surface Ethyl Cyanoacrylate

Colour: CLEAR

Strength: Medium

Fixture Time: 2-10 sec / 24 hrs

Temp Range: -55c to + 90c

Viscosity: Medium

Features: Fast Cure

-

3454 Non-Drip Gel

20g tube - 345420

+

Instant adhesive Gel. Non-sagging, Non-running Gel, which makes it suitable for vertical applications. Allows 0.020” gap fill.

Type: Surface Insensitive Ethyl

Colour: CLEAR

Strength: High

Fixture Time: 15-sec / 24 hrs

Temp Range: -50c to + 80c

Viscosity: Gel

Features: Gel

-

3480 Rubber Toughened

20g - 348020

+

Black rubber toughened instant adhesive. Used when high peel & impact resistance is required. Suitable for applications involving movement or vibration in the finished item. Typical applications may be power tools, white goods and heavy industrial applications.

Type: Toughened Ethyl

Colour: BLACK

Strength: High

Fixture Time: 15-sec to / 24 hrs

Temp Range: -50c to + 100c

Viscosity: Medium

Features: High Peel Strength

-



XS SEALANTS

Ultraloc XS range liquid thread sealants seal and secure metal pipes and fittings. Filling the space between threaded metal parts and curing to prevent leakage. Designed for low and high pressure applications.

Complete Sealing, Locks & seals in any position, Does not block pipe system, Instant low pressure seal, Easy application & disassembly



XS10 Liquid Gasket

60g tube - XS1001

300ml cart - XS1002

+

A red, single component anaerobic sealant. Easily applied, XS10 cures in the absence of air and form a tough rigid gasket with excellent solvent & chemical resistance. The low pressure seal will not shrink or crack. Temp range of -55c to 200c.

Gap Size: Less that 0.5mm

Flange Range: Rigid (metal to metal)

Temp Range: -55c to 200c

Unique Features: High solvent & chemical resistance

Gasket Type: Formed in place

Low Pressure Seal: 2 hrs

Oil Resistance: Excellent

Senor Safe: Yes

-

XS15 Gasket Sealant

60g tube - XS1502

300ml cart - XS1503

+

A purple, single component anaerobic sealant. Easily applied. XS15 cures between the parts to form in place a tough flexible gasket giving an instant low pressure seal. Will not shrink, relax or crack. Temp range -55c to 150c.

Gap Size: Less that 0.5mm

Flange Range: Flexible (metal to metal)

Temp Range: -55c to 150c

Unique Features: Easily applied, use on steal

Gasket Type: Formed in place

Low Pressure Seal: 30 mins

Oil Resistance: Excellent

Senor Safe: Yes

-

XS18 Flange Sealant

60g tube - XS1802

300ml cart - XS1803

+

A red, single component anaerobic sealant. Easily applied, XS18 cures between the parts, this forms a tough, flexible gasket. Giving an instant low - pressure seal. Will not shrink, relax or crack. Temperature range -55c to 150c.

Gap Size: Less that 0.5mm

Flange Range: Rigid (metal to metal)

Temp Range: -55c to 200c

Unique Features: High solvent & chemical resistance

Gasket Type: Formed in place

Low Pressure Seal: 2 hrs

Oil Resistance: Excellent

Senor Safe: Yes

-

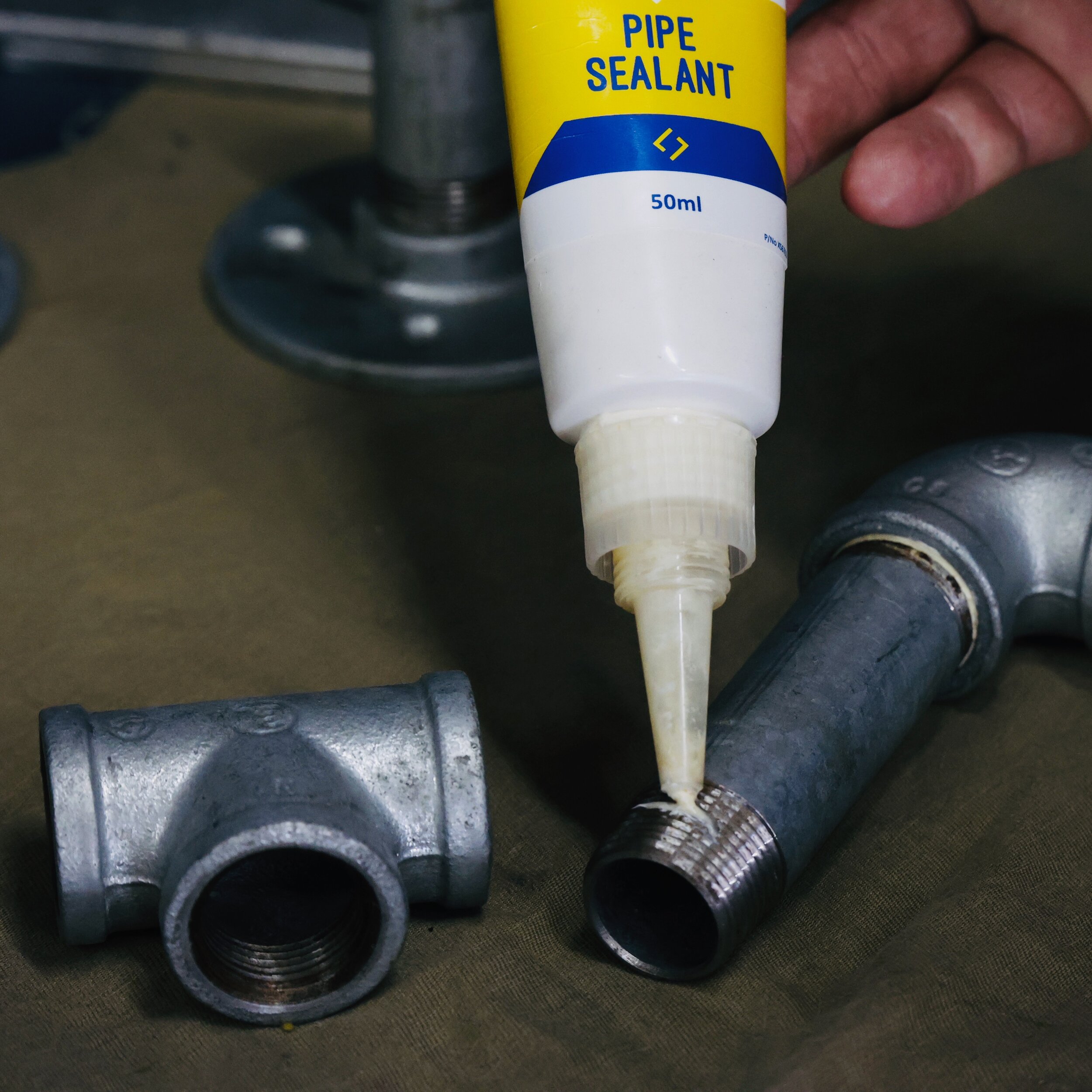

XS67 Pipe Sealant - Teflon

60ml tube - XS6701

250ml tube - XS6702

+

A white anaerobic pipe sealant containing Teflon. Seals instantly and is resistant to most chemicals. Suitable use on mild steel, aluminium, copper and brass. Removable with hand tools and prevents vibration loosening. Temp -55c to 180c. Recommended for all course threads where slow cure is required to prolong time frame for adjusting values & fitting.

Pipe Threads: Metal

Description: White Paste

Temp Range: -55c to 180c

Unique Features: Contains Teflon

Max Thread: 76mm (3”)

Instant Low Pressure Seal: Yes

Disassembly Strength: Low / Medium

-

XS77 Pipe Sealant - High Pressure

60ml tube - XS7701

250ml tube - XS7702

+

A high - pressure anaerobic pipe sealant, seals instantly and is resistant to most chemicals. Suitable for use on mild steel, stainless steel, aluminium ,copper and brass. Removable with hand tools and prevents vibration loosening. Temperature range -55c to 180c.

Pipe Threads: Metal

Description: Yellow Paste

Temp Range: -55c to 180c

Unique Features: Chemical Resistant & High Pressure

Max Thread: 76mm (3”)

Instant Low Pressure Seal: Yes

Disassembly Strength: Medium / High

-

3565 Pipe Sealant - High Pressure

50ml - 356550

250ml tube - 356525

+

A controlled strength, high perfromance thread sealant containing Teflon designed for the locking and sealing of metal threaded pipes & fittings. Certified to ANSI/NSF Standard 61 for use in commercial and residential potable water systems not exceeding 80c. Suitable to seal water, petrols, oils, hydrocarbons and other chemicals.

Pipe Threads: Metal

Description: White Paste

Temp Range: -55c to 180c

Unique Features: Contains Teflon

Max Thread: 76mm (3”)

Instant Low Pressure Seal: Yes

Disassembly Strength: Low / Medium

-


SEALANTS

3542 Hydraulic & Pneumatic Sealant

10ml bottle - 354210

+

Fast cure medium strength thread sealant suitable for use with fine threads in hydraulic & pneumatic installations and connections which are up to 25mm in diameter.

Pipe Threads: Metal

Description: Brown

Temp Range: -55c to 150c

Unique Features: Fine Threads

Max Thread: 25mm

Instant Low Pressure Seal: Medium Viscosity

Disassembly Strength: Low / Medium

-

3545 Hydraulic & Pneumatic Sealant

10ml bottle - 354510

50ml bottle - 354550

250ml bottle - 354525

+

Anaerobic high viscosity, fast curing hydraulic sealant. Ideal for locking & sealing hydraulic & pneumatic pipes & fittings. Seals operating pressures to 10,000 psi.

Pipe Threads: Metal

Description: Purple

Temp Range: -55c to 150c

Unique Features: Fast Curing & High Viscosity

Max Thread: Fine up to 20mm

Instant Low Pressure Seal: High

Disassembly Strength: Low / Medium

-

3569 Hydraulic & Pneumatic Sealant

10ml bottle - 356910

50ml bottle - 356950

250ml bottle - 356925

+

Anaerobic hydraulic sealant specifically designed for locking and sealing of hydraulic & pneumatic parts, metal pipes and fittings. Seals operating pressures to 10,000 psi.

Pipe Threads: Metal

Description: Brown

Temp Range: -55c to 150c

Unique Features: Medium Viscosity

Max Thread: 20mm

Instant Low Pressure Seal: Medium Viscosity

Disassembly Strength: Low / Medium

-



ACTIVATORS

ACT01

100ml - ACT01

+

An acetone based solvent for use as a surface cleaner and activator prior to the application of adhesive. Also used for removing adhesive and cleaning applicator equipment.

Description: Activator

Base: Acetone

-

ACT02

100ml - ACT02

+

A heptane based solvent activator designed to cure excess adhesive outside the bondline. Can be applied during or after assembly to increase cure speeds and the gap filling properties of cyanoacrylate adhesives.

Description: Activator

Base: Heptone

-

ACT03

100ml - ACT03

+

A single component solvent based polyolefin primer. Increases bond speed and strength of Ultraloc cyanoacrylates when used on low energy plastics such as polyethylene, polypropylene & silicone rubber.

Description: Primer

Base: Polyolefin

-

ACT04

100ml - ACT04

+

Solvent based activator primer specially formulated to accelerate the curing of Ultraloc’s anaerobic adhesive range. On part life of up to 7 days.

Description: Activator

Base: Solvent

-

ACT05

100ml - ACT05

+

Solvent based activator primer specially formulated to accelerate the curing of Ultraloc’s anaerobic adhesive range. On part life of up to 30 days.

Description: Activator

Base: Solvent

-
